Versatile Compact Tractor
Overview
Click the button to find out the characteristics
of each point of the products
-

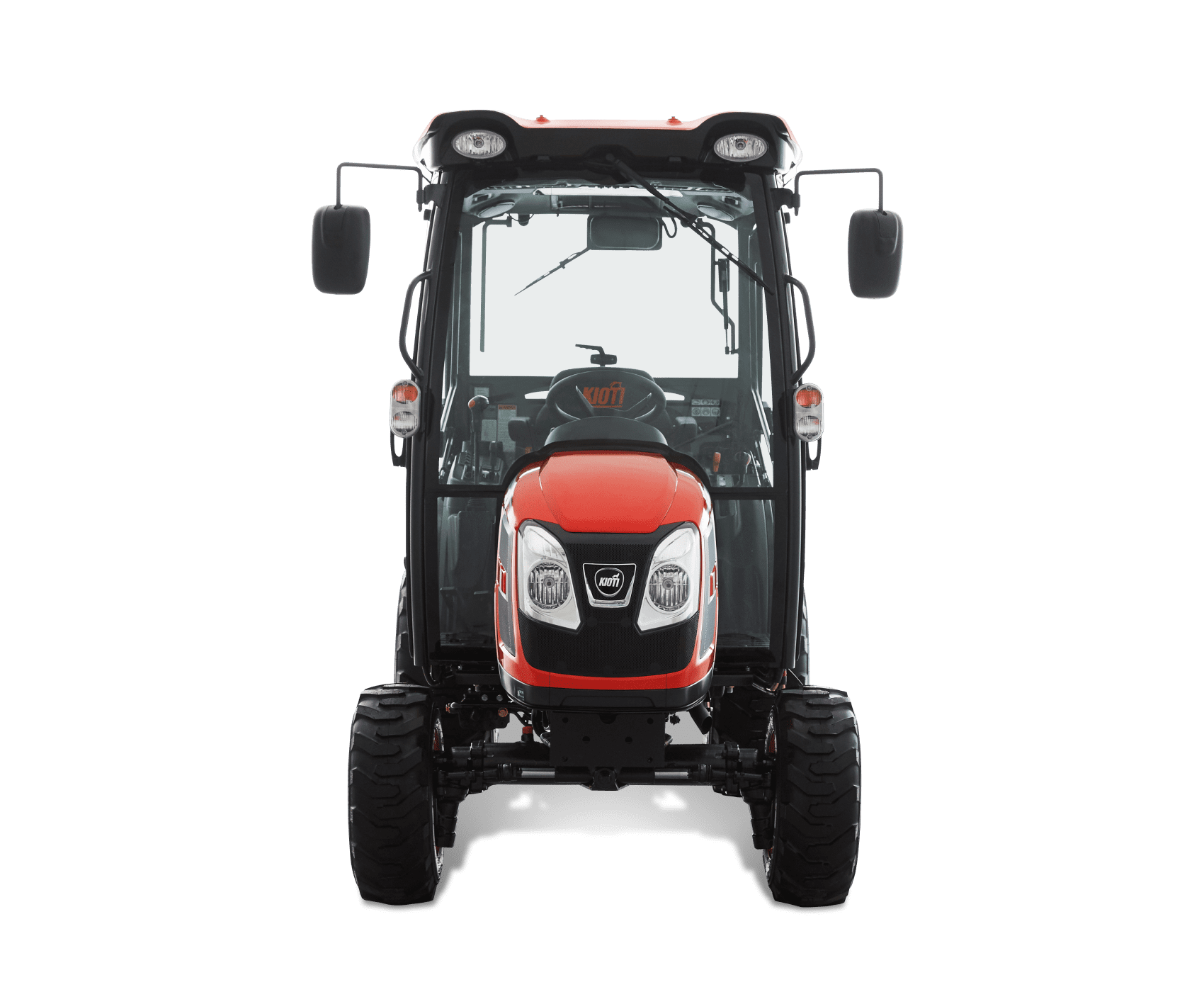

Front
-
Corner
-
Side
-

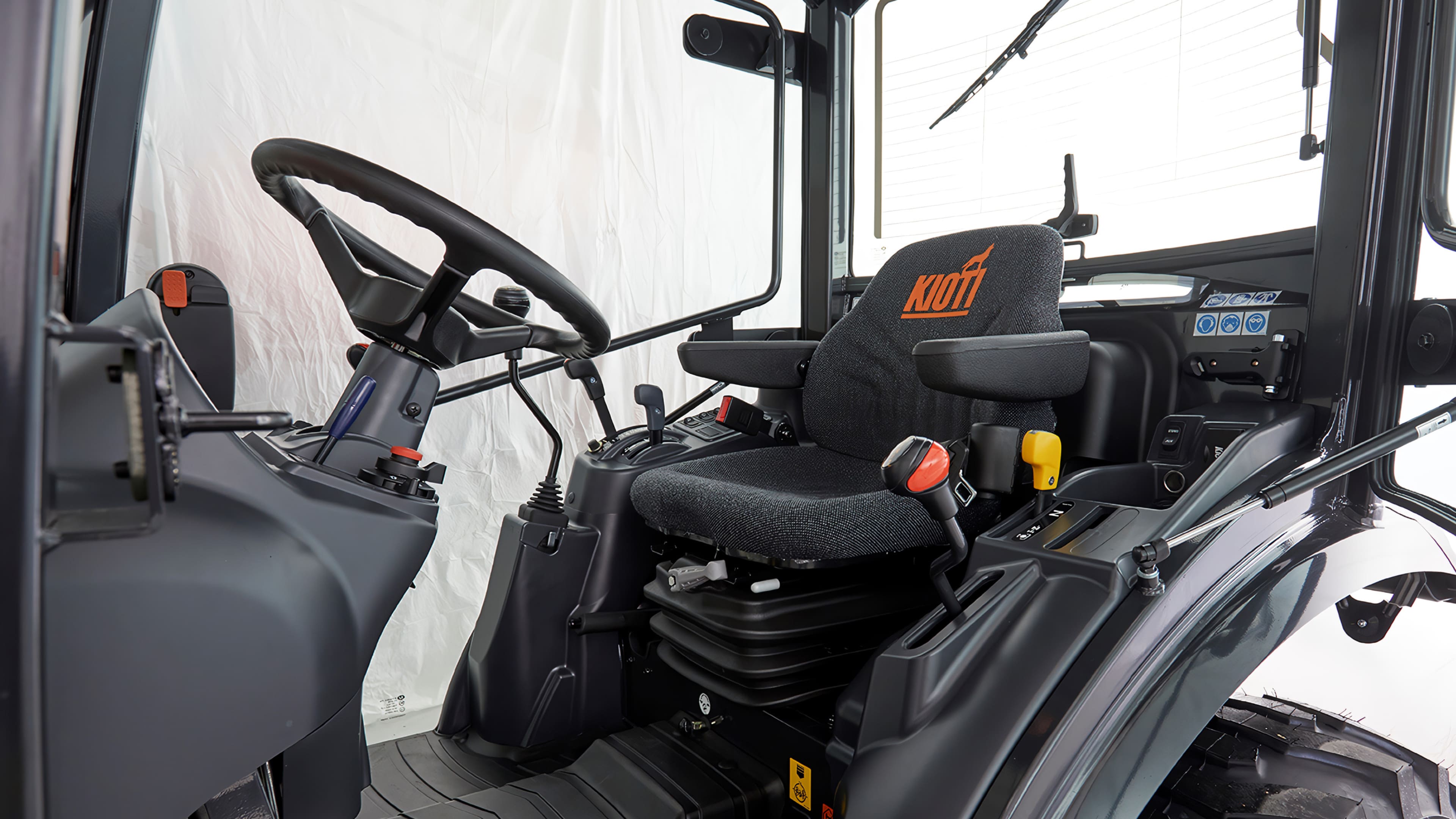

Interior

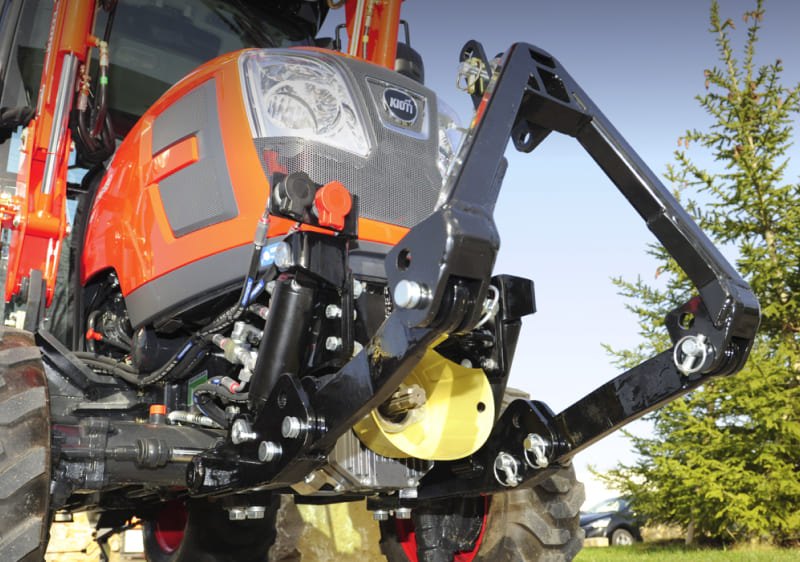

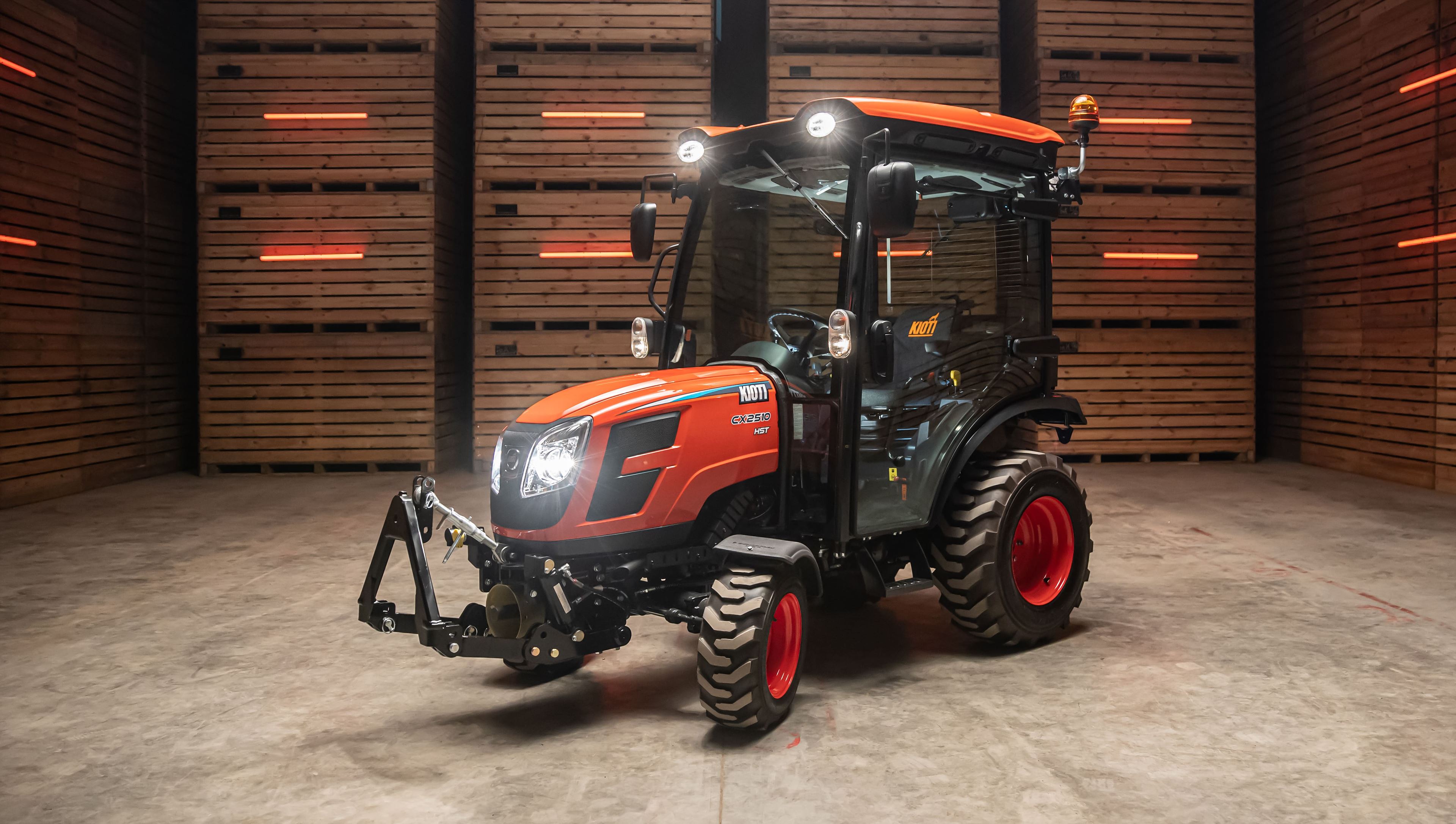

FRONT PTO (MATEV)
The CX2510 can optionally be equipped with a front PTO (direct drive from the engine or through drive from the intermediate axle PTO).
FRONT WHEEL FENDER
The front mudguards for the CX2510 swivel with the wheels and prevent spray water from reaching the platform or the cab window.

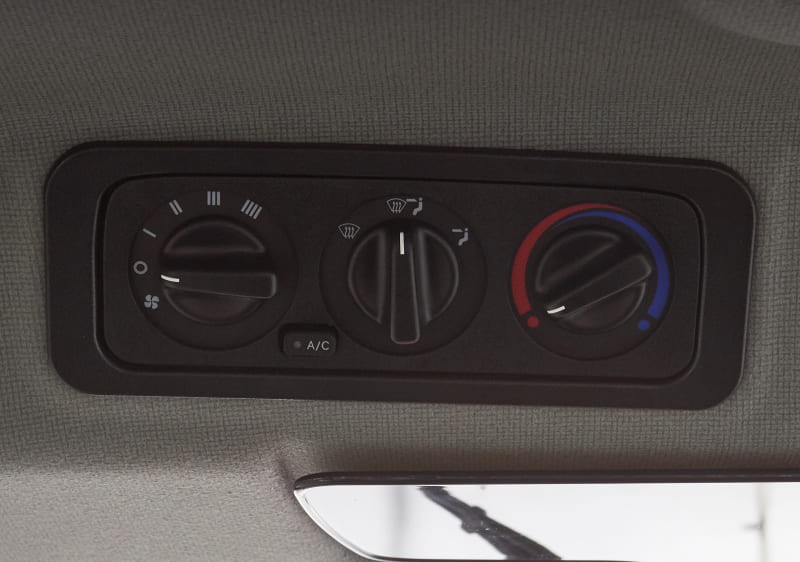

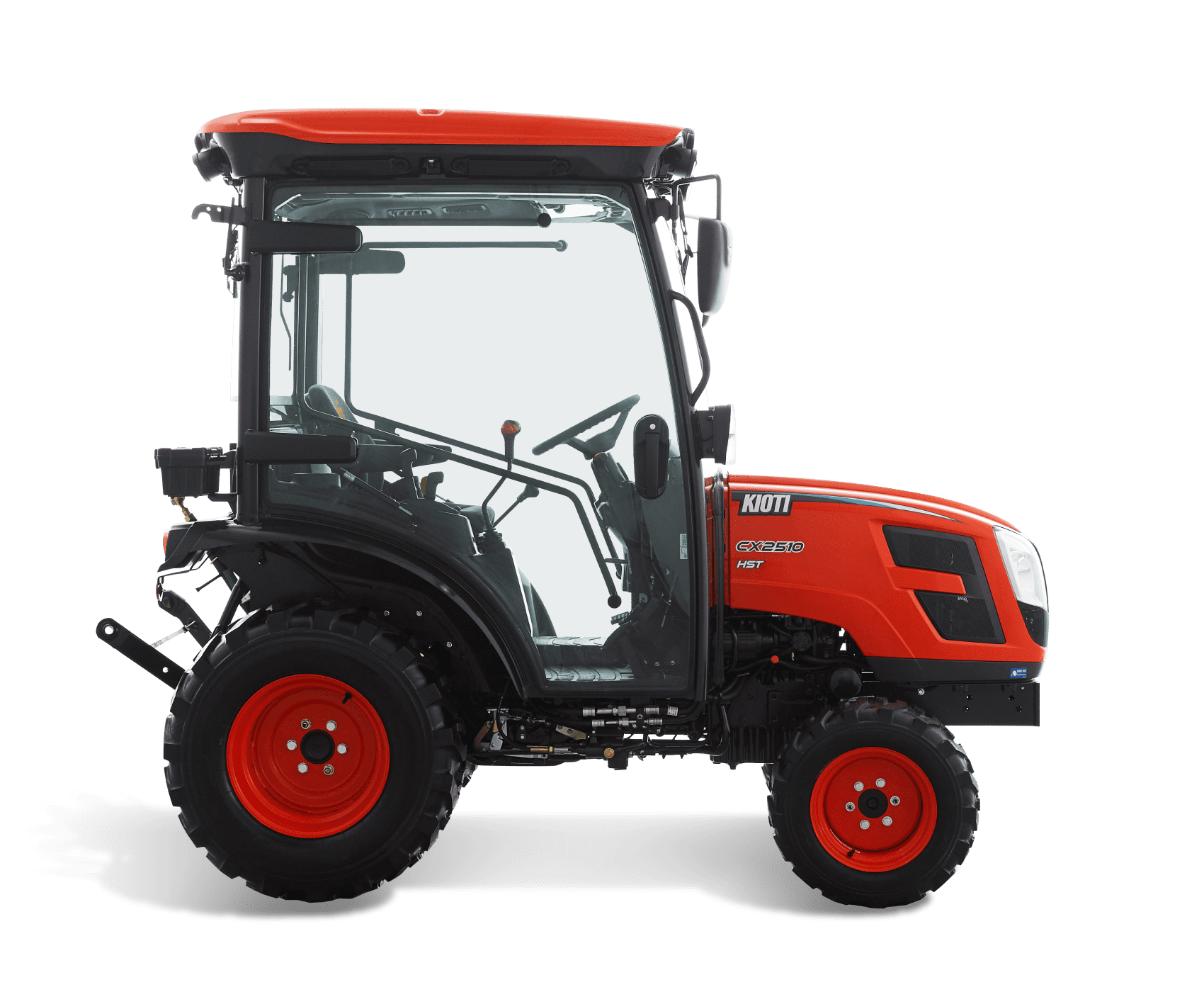

AIR CONDITIONING SYSTEM
Comfortable in summer and winter: The CX2510 with cab comes with air conditioning and heat as standard features.

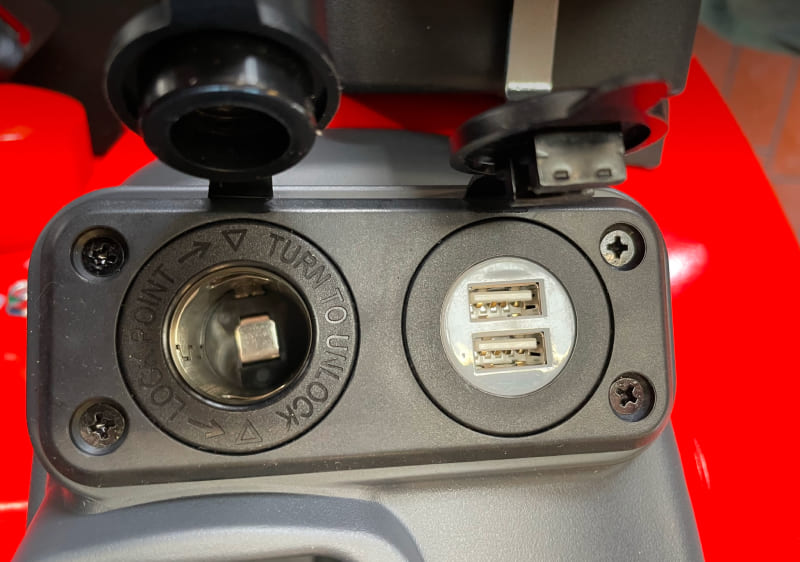

POWER AND USB CONNECTIONS (ROPS)
Standard equipment for ROPS models: On-board power socket and two USB plugs for conveniently charging electronic devices.
Highlight
CX Series Compact Tractors
For homeowners with sprawling gardens, hobby farmers, and small-scale farmers who demand greater lift capacity and ground clearance to conquer demanding tasks, the KIOTI CX Series compact tractors stand as the ultimate laborers to keep your land thriving.
Surpass the Limitations of Entry Level Tractors
-

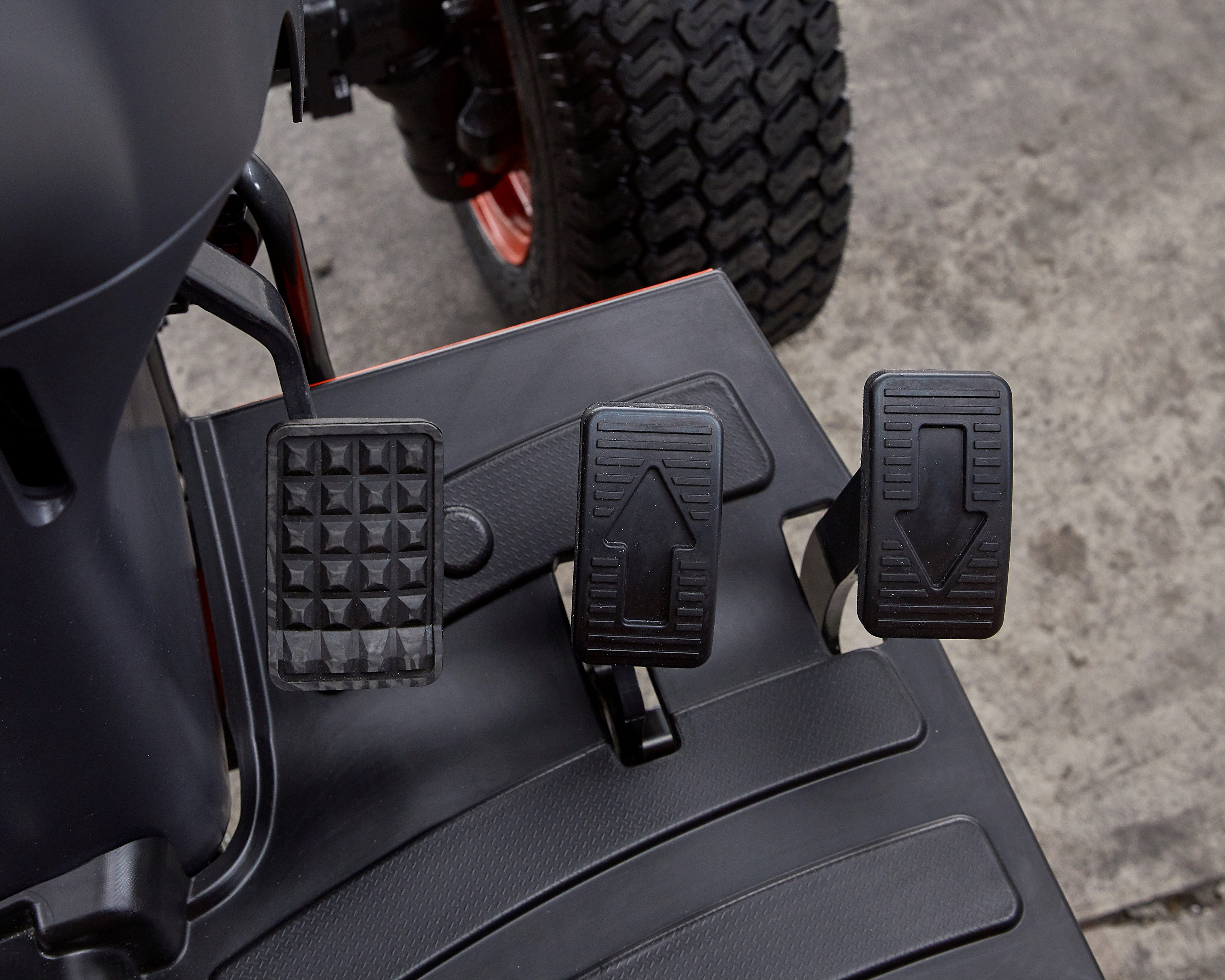

HYDROSTATIC TRANSMISSION (HST)
The two-stage HST transmission can be easily controlled via the two gas pedals and enables a quick and easy change of direction.
-

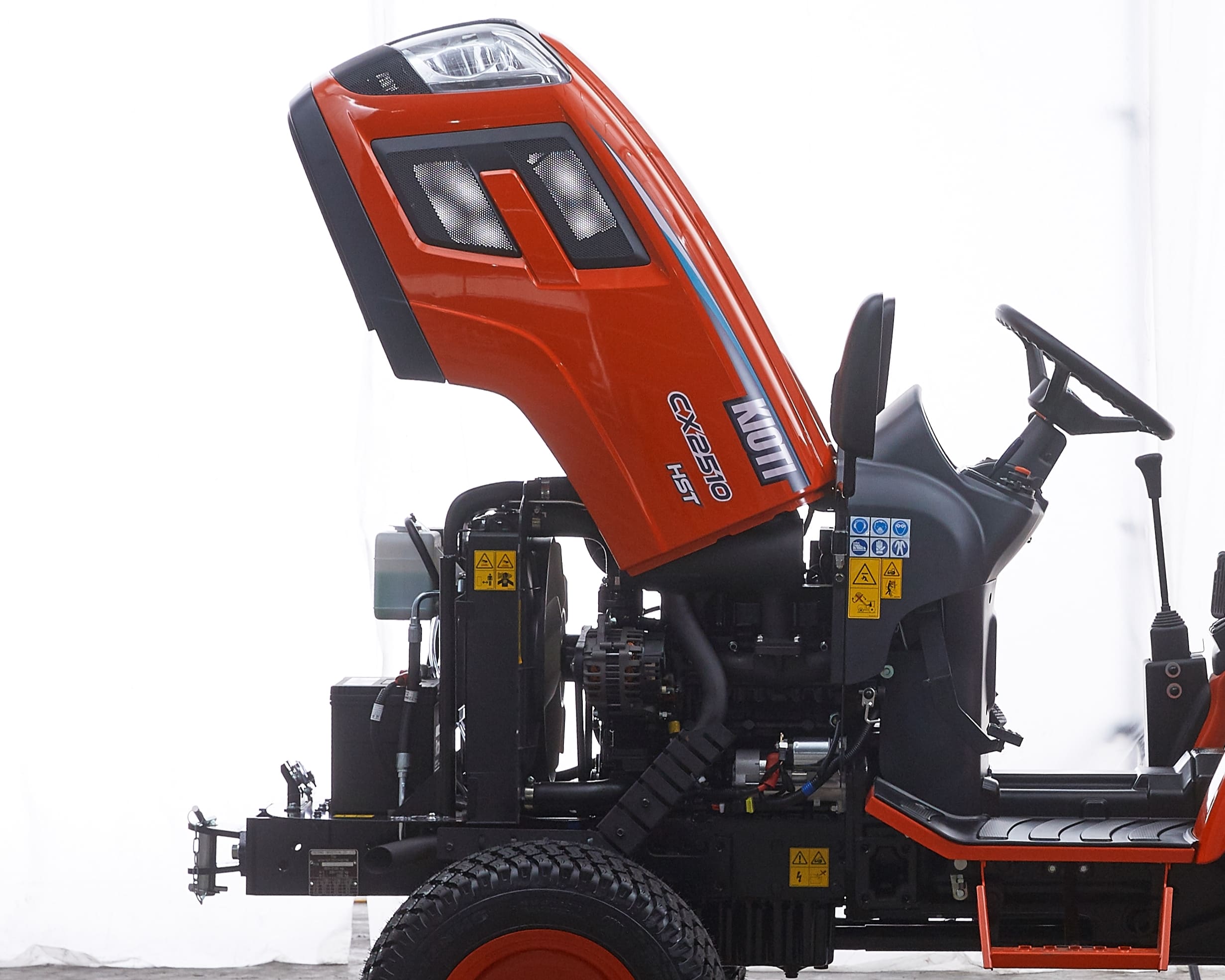

ONE-PIECE HOOD
The one-piece hood can be easily folded upward to provide easy access to the usual maintenance points.
-

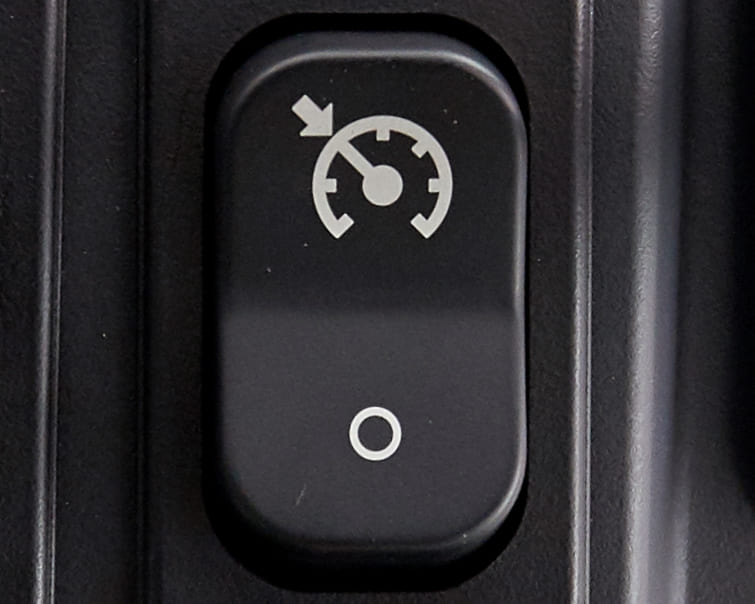

TEMPOMAT
With cruise control, even longer distances can be covered comfortably and effortlessly.
-
CROSS CONTROL LEVER
The CX models are equipped with a cross control lever as a standard feature. It is ergonomically integrated into the side console and allows convenient operation of attachments.
-

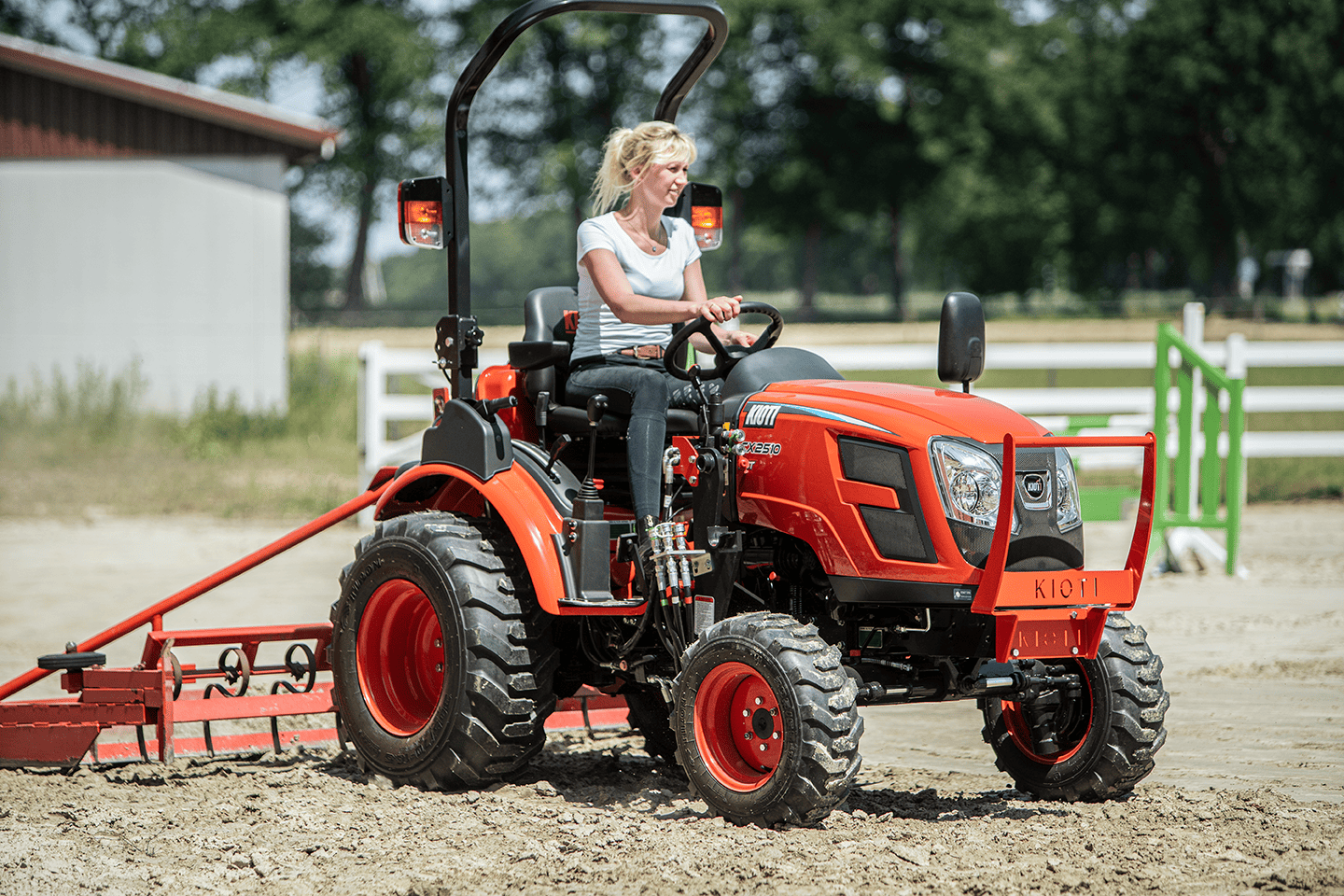

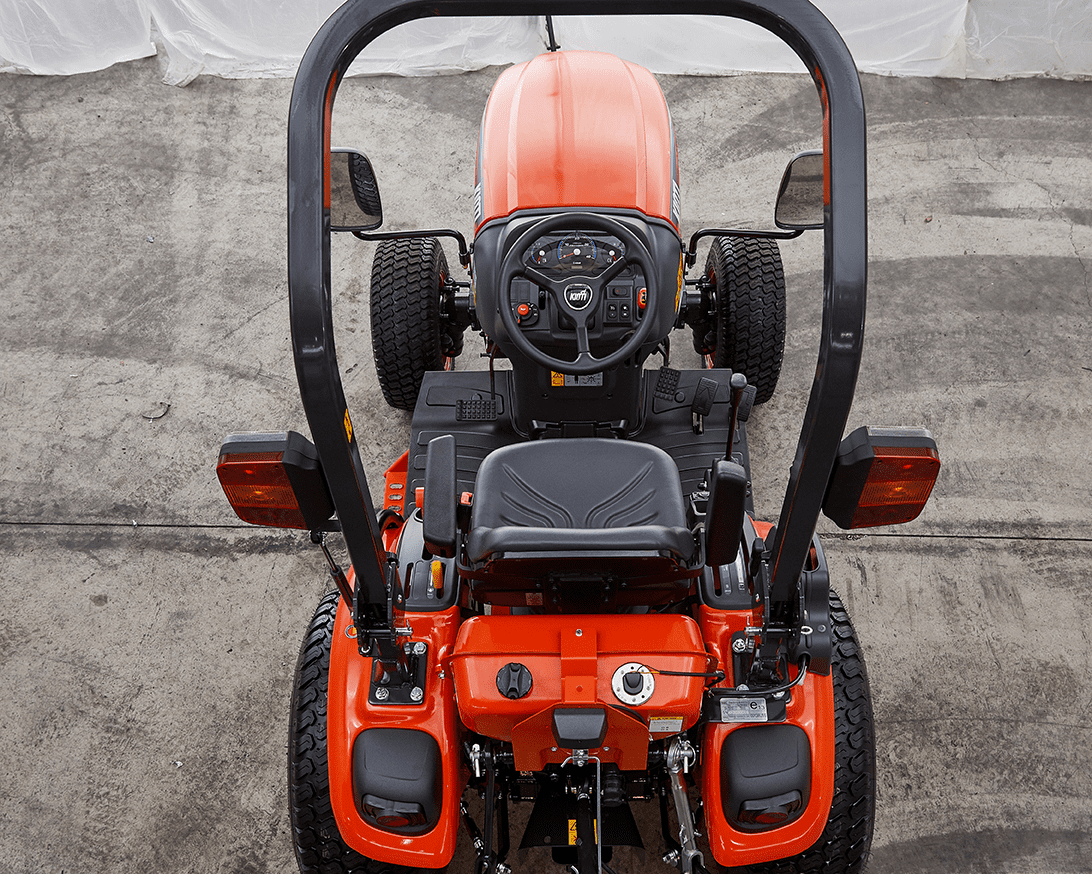

FOLDING BOW
The safety bar on models with an open platform can be conveniently folded down.
-
AIR CONDITIONING SYSTEM
Comfortable in summer and winter: The CX2510 with cab comes with air conditioning and heat as standard features.
-
COMPACT DESIGN
The narrow external width and high maneuverability allow use in confined spaces in both summer and winter.
-

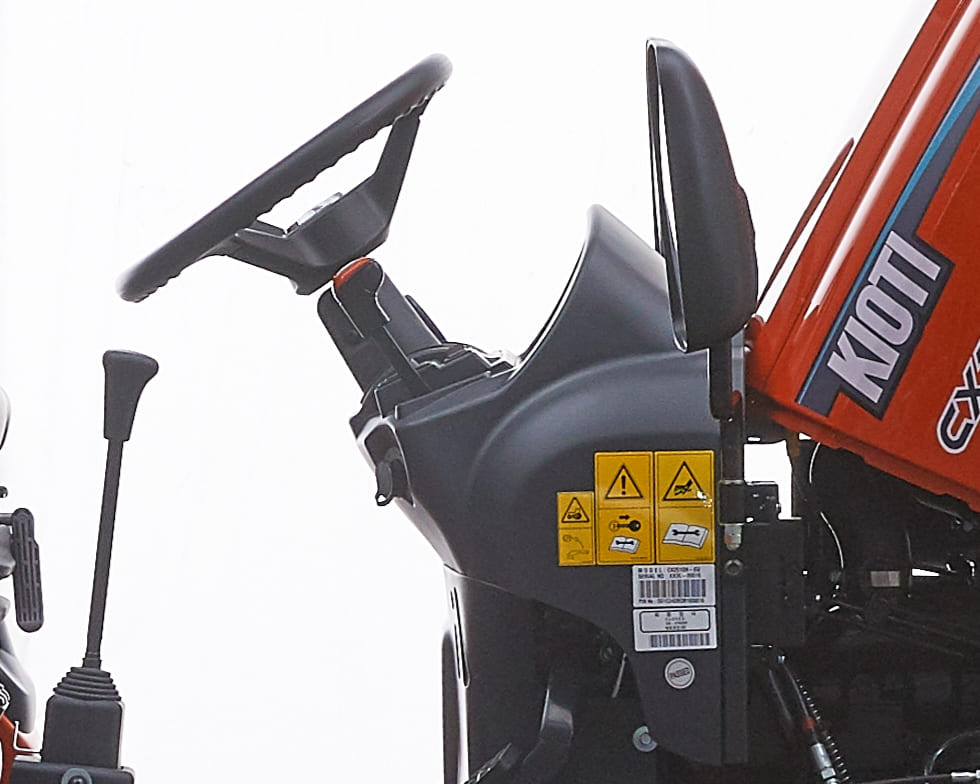

POWER STEERING
The steering wheel can be adjusted independently. Together with a tight turning radius, the hydrostatic power steering makes maneuvering effortless.
-
ENGINE
With a 1.6 liter diesel engine, the CX series has sufficient power for both private and commercial use.
-

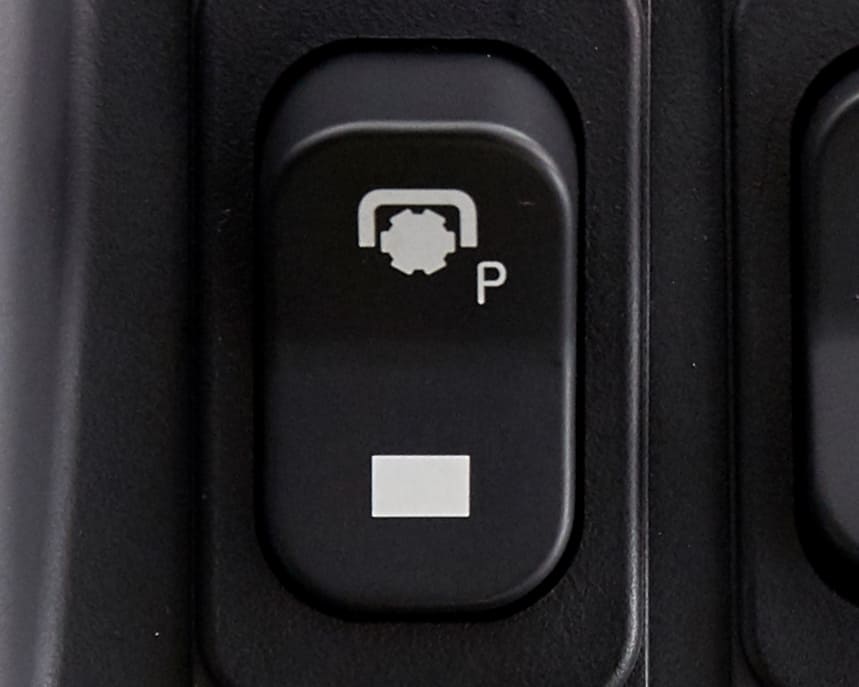

STATIONARY PTO
After activating the switch for the S-PTO, the PTO can be operated without the driver having to be on the seat (e.g. for chopping wood).
Don't take our word for it.
Read for yourself what others are saying about their KIOTI.

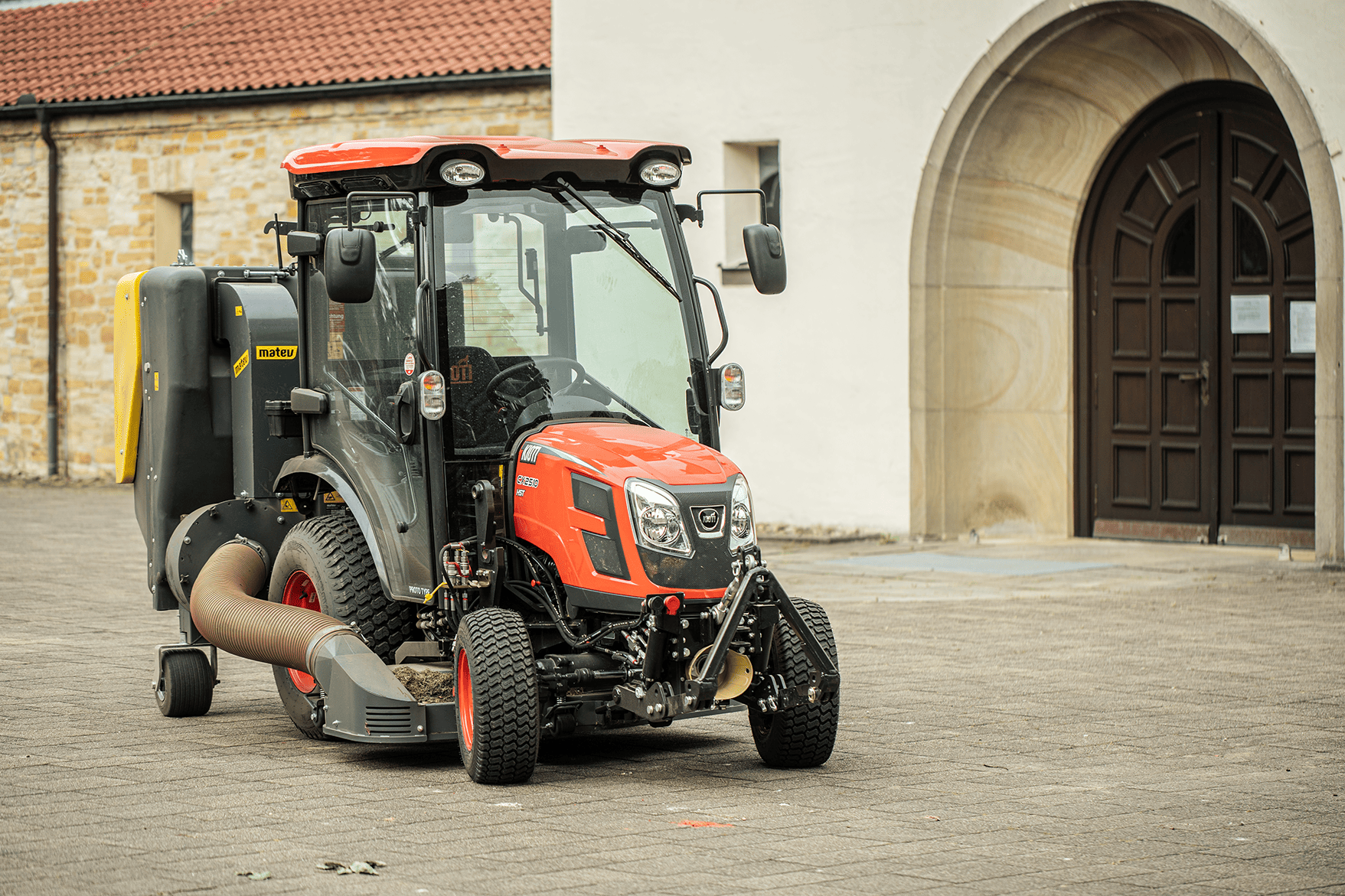

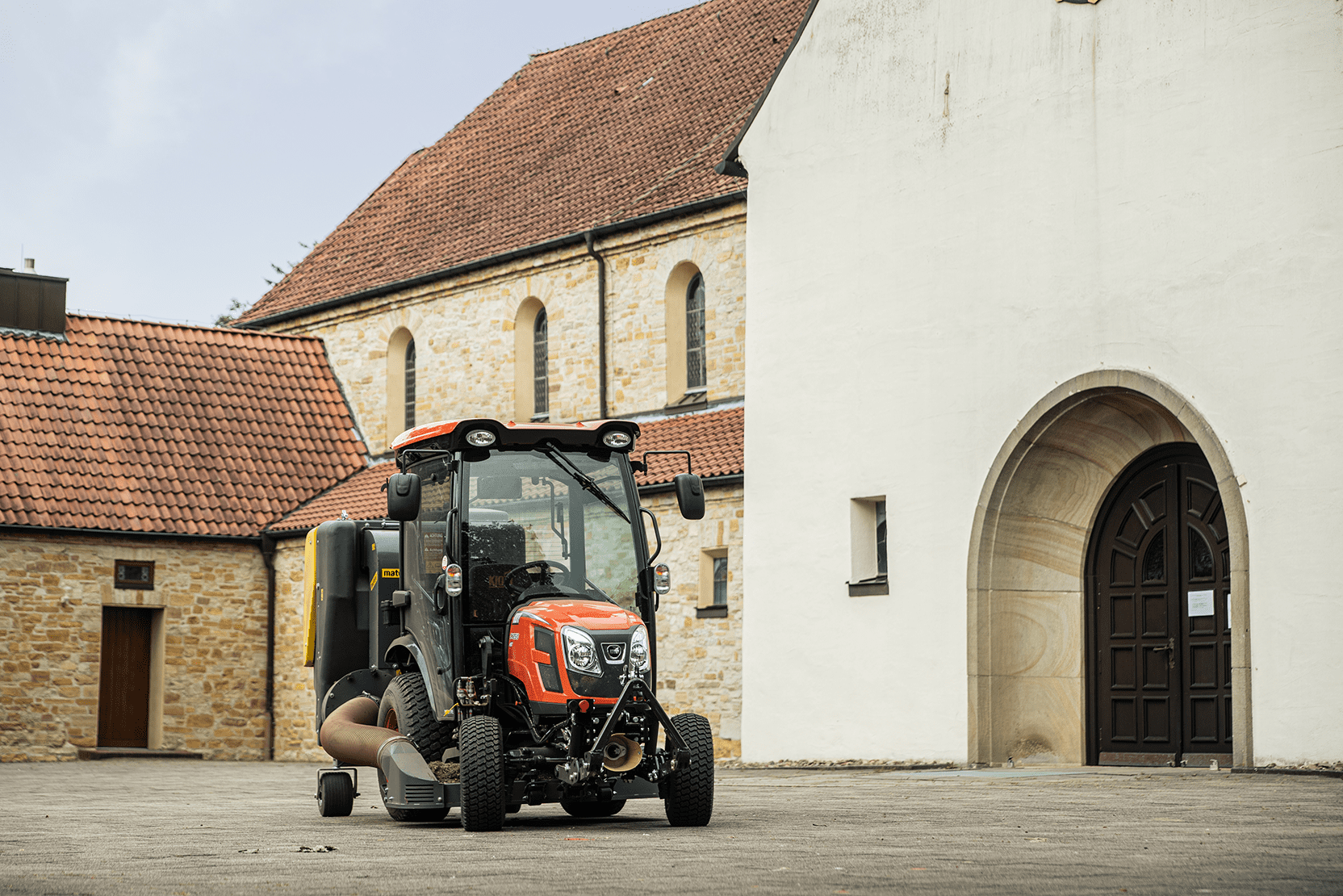

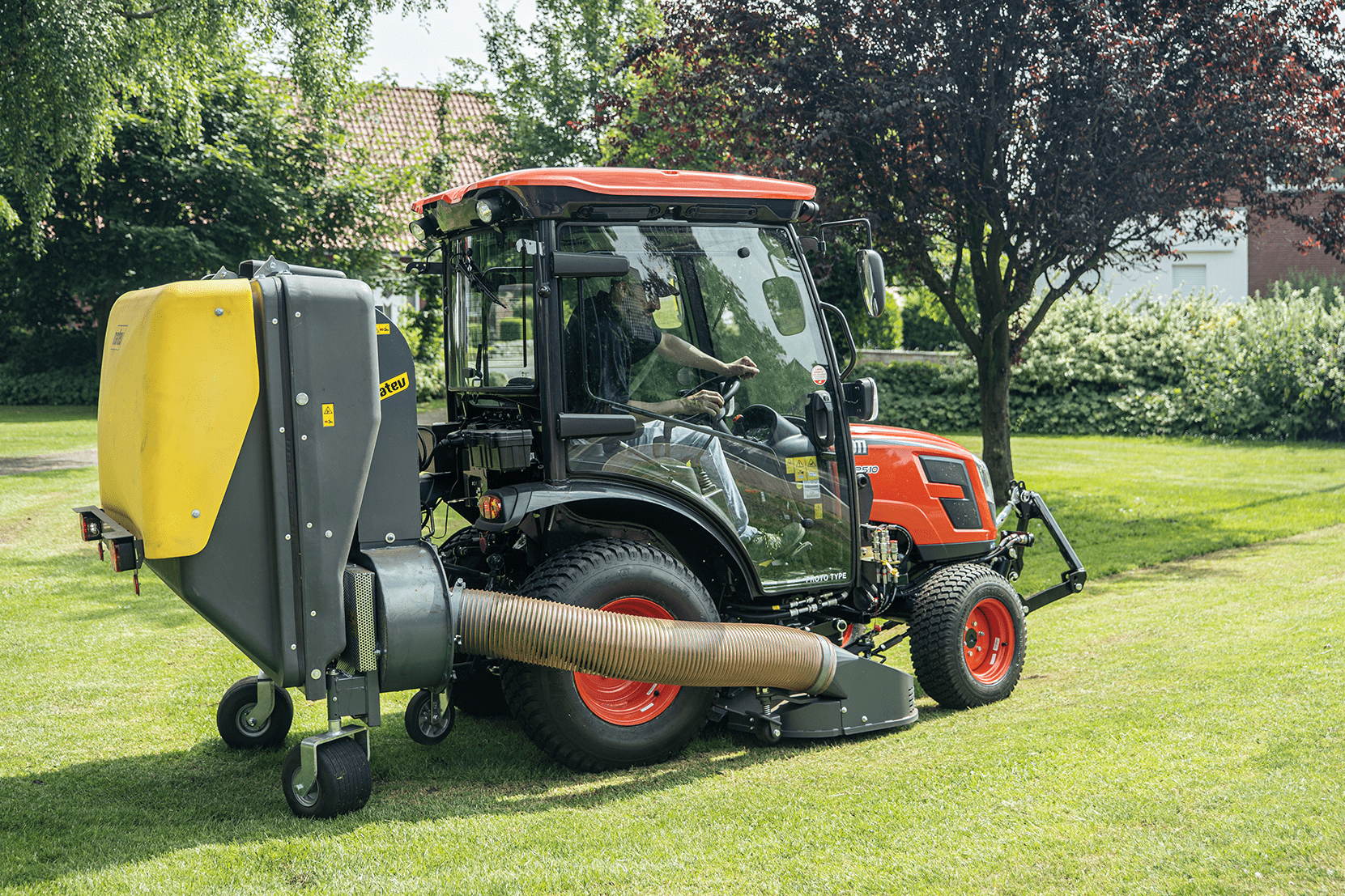

I was looking for a compact tractor for my caretaking service that would help me with my work in both summer and winter. The ideal size of the CX2510 for my areas of application, coupled with the wide range of options for using attachments and the attractive price were the deciding factors. I use a 1.40 m wide mulching mower at the front and use it to work quickly and stress-free on sports fields and larger meadows. In winter, I use a snow blade for snow removal and a spreader in the rear. The narrow dimensions and extremely high maneuverability of the tractor are ideal for driving on all paths. I can rely on the small tractor since it is easy to operate, comfortable, and meets all my needs. The best!
Malte Muller, HTN Hausmeisterservice, SuderburgGallery
Specifications
- Model
Engine
| Manufacturer | Daedong | Daedong | Daedong | Daedong |
|---|---|---|---|---|
| Model | 3A165LWH-E | 3A165LWH-E | 3A165LWH-E | 3A165LWH-E2 |
| Engine Gross Power HP (kw) | - | - | - | - |
| Engine Gross Power (97/68EC) HP (kw) | - | - | - | - |
| Engine Gross Power (ECE-R120) HP (kw) | 24.5 | 24.5 | 24.5 | 24.5 |
| Engine Base Power HP (kw) | - | - | - | - |
| Engine Boost Power HP (kw) | - | - | - | - |
| Rated revolution (RPM) | 2600 | 2600 | 2600 | 2600 |
| Max. Torque (Nm) | - | - | - | - |
| Torque Reserve Percentage (%) | - | - | - | - |
| No. of cylinders | 3 | 3 | 3 | 3 |
| Total Displace cc (cu) | 1647 (87) | 1647 (87) | 1647 (87) | 1647 (87) |
Capacity
| Fuel tank (ℓ) | 25 | 25 | 25 | 25 |
|---|---|---|---|---|
| Urea tank (ℓ) | - | - | - | - |
PTO
| Rated PTO Power/RPM (HP) | - | - | - | - |
|---|---|---|---|---|
| Maximum PTO Power (HP) | - | - | - | - |
| Maximum PTO Power (HP/RPM) | 18.8 | 19.3 | 19.3 | 18.8 |
| Rear PTO | - | - | - | - |
| Rear PTO Type | Live | Transmission | Transmission | Live |
| Rear PTO (RPM) | 540 | 540 | 540 | 540 |
| Mid PTO (RPM) | - | - | - | - |
| Ground PTO | - | - | - | - |
Hydraulic
| 3 Point Lift Control Type | Position | Position | Position | Position |
|---|---|---|---|---|
| Implement Pump (ℓ/min) | - | - | - | - |
| Power Steering Pump (ℓ/min) | - | - | - | - |
| Total hydraulic flow (ℓ/min) | 42.9 | 42.9 | 42.9 | 42.9 |
| 3-point hitch type | Category 1 | Category 1 | Category 1 | Category 1 |
| Lower Link type | Ball | Ball | Ball | Ball |
| at lift point (Max.) (kg.f) | - | - | - | - |
| at lift point (Horizontal position) (kg.f) | - | - | - | - |
| Lift capacity at lift point | - | - | - | - |
| Lift capacity at 24 in.behind lift point | - | - | - | - |
| at 610mm point (Through the full range) (kg.f) | - | - | - | - |
| No. of standard remote valves (Front/Rear) | - | - | - | - |
| No. of Std. remote valve's ports (Rear) | 1 (Std.) | 1 (Std.) | 1 (Std.) | 1 (Std.) |
Drive Train
| Transmission | Hydrostatic | Manual | Manual | Hydrostatic |
|---|---|---|---|---|
| No. of speeds | - | 6F X 2R | 6F X 2R | - |
| Mechanical Differential Lock | - | - | - | - |
| Shuttle Type | - | Synchro shuttle | Synchro shuttle | - |
| Hi-Low | - | - | - | - |
| Brake Type | Wet disc type | Wet disc type | Wet disc type | Wet disc type |
| Main Brake Type | - | - | - | - |
| Parking Brake Type | - | - | - | - |
| Main Clutch Type | Dry single | Dry single | Dry single | Dry single |
| Front Wheel Drive System | Mechanical | Mechanical | Mechanical | Mechanical |
| PTO Type (PTO RPM) | - | - | - | - |
Traveling Speeds
| Forward (km/h) | 0-21.74 | 1.22-19.07 | 1.22-19.07 | 0-21.74 |
|---|---|---|---|---|
| Reverse (km/h) | 0-15.22 | 1.51-7.40 | 1.51-7.40 | 0-15.22 |
Dimensions
| Overall length (w/o front weight and w/o 3pt hitch) (mm) | - | - | - | - |
|---|---|---|---|---|
| Overall length (w/o front weight and w/3pt hitch) (mm) | - | - | - | - |
| Overall length (w/weight support and w/3pt hitch) (mm) | - | - | - | - |
| Overall length (includes 3-pt hitch) (mm) | 2790 | 2790 | 2790 | 2826 |
| Overall length (without 3-pt hitch) (mm) | 2432 | 2432 | 2432 | 2432 |
| Overall length (with 3 point & front weight) (mm) | 3170 | 3170 | 3170 | 3170 |
| Overall length (w/front weight and w/3pt hitch) (mm) | - | - | - | - |
| Overall width (minimum tread) (mm) | 1185 | 1185 | 1185 | 1185 |
| Overall height (ROPS) (mm) | 2318 | 2318 | 2048 | - |
| Overall height (CAB) (mm) | - | - | - | - |
| Wheel base in. (mm) | 1520 | 1520 | 1520 | 1520 |
| Tread Width (Front) (mm) | - | - | - | - |
| Tread Width (Rear) (mm) | - | - | - | - |
| Ground Clearence in. (mm) | 340 | 340 | 340 | 340 |
| Turning radius(w/o brake) (mm) | - | - | - | - |
| Turning radius (w/brake) (mm) | 2,750 | 2,750 | 2,750 | 2,750 |
| Weight with ROPS (kg.f) | 1042 | 1042 | 1070 | - |
| Weight with Cabin and AG tires (kg.f) | - | - | - | - |
| Max. Permissible Weight (EEC Standard) (kg.f) | - | - | - | - |
Tire Size
| AG Tire - Front | 7-12/6 | 7-12/6 | 7-12/6 | 7-12/6 |
|---|---|---|---|---|
| AG Tire - Rear | 11.2-16/6 | 11.2-16/6 | 11.2-16/6 | 11.2-16/6 |
| Turf Tire - Front | - | - | - | - |
| Turf Tire - Rear | - | - | - | - |
| Industrial Tire - Front | - | - | - | - |
| Industrial Tire - Rear | - | - | - | - |
| Radial - Front | - | - | - | - |
| Radial - Rear | - | - | - | - |
